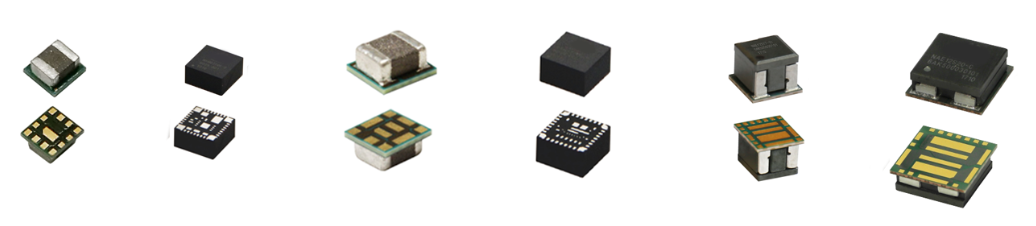

Model | Input Voltage | Output Voltage | Output current | Output Power | Dimension |
NAE03S03 | 3~5.4Vdc | 0.8-3.7V | 3A | 10W | 3.0*2.8*1.6mm |
NAE12S03 | 6.3~14Vdc | 0.8-5.2V | 3A | 15W | 3.0*2.8*1.6mm |
NAM03S06 | 3~5.75Vdc | 0.9~3.7V | 6A | 22W | 8*8*4mm |
NAM12S06 | 9~14Vdc | 0.7~5.4V | 6A | 32W | 7*7*4mm |
NAE12S17 | 3~15Vdc | 0.6~5.5V | 17A | 93.5W | 7*7*6mm |
NAE12S20 | 3~15Vdc | 0.6~5.5V | 20A | 110W | 11*11*4mm |
